APC Easy UPS 3L 600KVA

APC Easy UPS 3L 600KVA

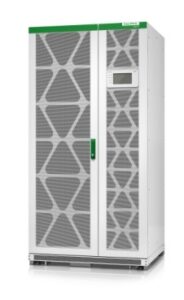

The APC Easy UPS 3L 600kVA 400V 3:3 UPS (Model: E3LUPS600KHS) is a high-capacity, three-phase uninterruptible power supply designed for large-scale commercial and industrial applications. It offers robust power protection with features that ensure reliability, efficiency, and ease of maintenance.

Key Specifications

• Power Capacity: 600 kVA / 600 kW

• Input Voltage: 400V 3-phase (compatible with 380V and 415V)

• Output Voltage: 400V 3-phase (compatible with 380V and 415V)

• Input Voltage Range: 323V to 477V

• Input Power Factor: 0.99 at full load

• Output Frequency: 50/60 Hz (synchronized to mains)

• Efficiency: Up to 96% in double-conversion mode; up to 99% in ECO mode

• Topology: Online double-conversion

• Parallel Capability: Supports up to 5 units for redundancy or capacity scaling

• Battery Type: External battery system

• Battery Voltage: ±216V to ±300V

• Maximum Short-Circuit Current: 35 kA

• Control Interface: Touchscreen LCD display

• Dimensions (H x W x D): 197 cm x 100 cm x 85 cm

• Weight: Approximately 745 kg

• Certifications: CE, EAC, RCM

• Environmental Conditions:

  • Operating Temperature: 0°C to 30°C

  • Relative Humidity: 0% to 95% (non-condensing)

  • Altitude: Up to 1,500 meters without derating

• Protection: IP20 rating
