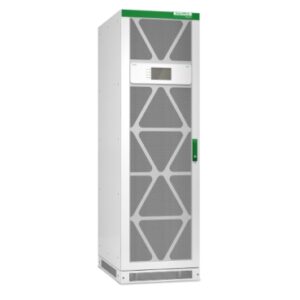

APC Easy UPS 3L 250KVA

APC Easy UPS 3L 250KVA

The Easy UPS 3L 250kVA is a three-phase uninterruptible power supply (UPS) system designed for critical power protection in commercial and industrial environments. It provides 250 kVA (kilovolt-amperes) of power capacity and is part of the Easy UPS 3L series developed by Schneider Electric.

Key Specifications

• Power Capacity: 250 kVA / 250 kW

• Input Voltage: 400V 3-phase (compatible with 380V and 415V)

• Output Voltage: 400V 3-phase (compatible with 380V and 415V)

• Input Voltage Range: 323V to 477V

• Input Power Factor: 0.99 at full load

• Output Frequency: 50/60 Hz (synchronized to mains)

• Efficiency: Up to 95.3% in double-conversion mode

• Topology: Online double-conversion

• Parallel Capability: Supports up to 5 units for redundancy or capacity scaling

• Battery Type: External battery system

• Nominal Battery Voltage: ±216V to ±300V

• End of Discharge Battery Voltage: ±172.8V to ±240V

• Maximum Short-Circuit Current: 35 kA

• Control Interface: Touchscreen LCD display

• Dimensions (H x W x D): 1970 mm x 600 mm x 850 mm

• Weight: Approximately 425 kg

• Certifications: CE, EAC, RCM

• Environmental Conditions:

  • Operating Temperature: 0°C to 30°C

  • Relative Humidity: 0% to 95% (non-condensing)

  • Altitude: Up to 1,500 meters without derating

• Protection: IP20 rating
